- Turntable
TAT2M2

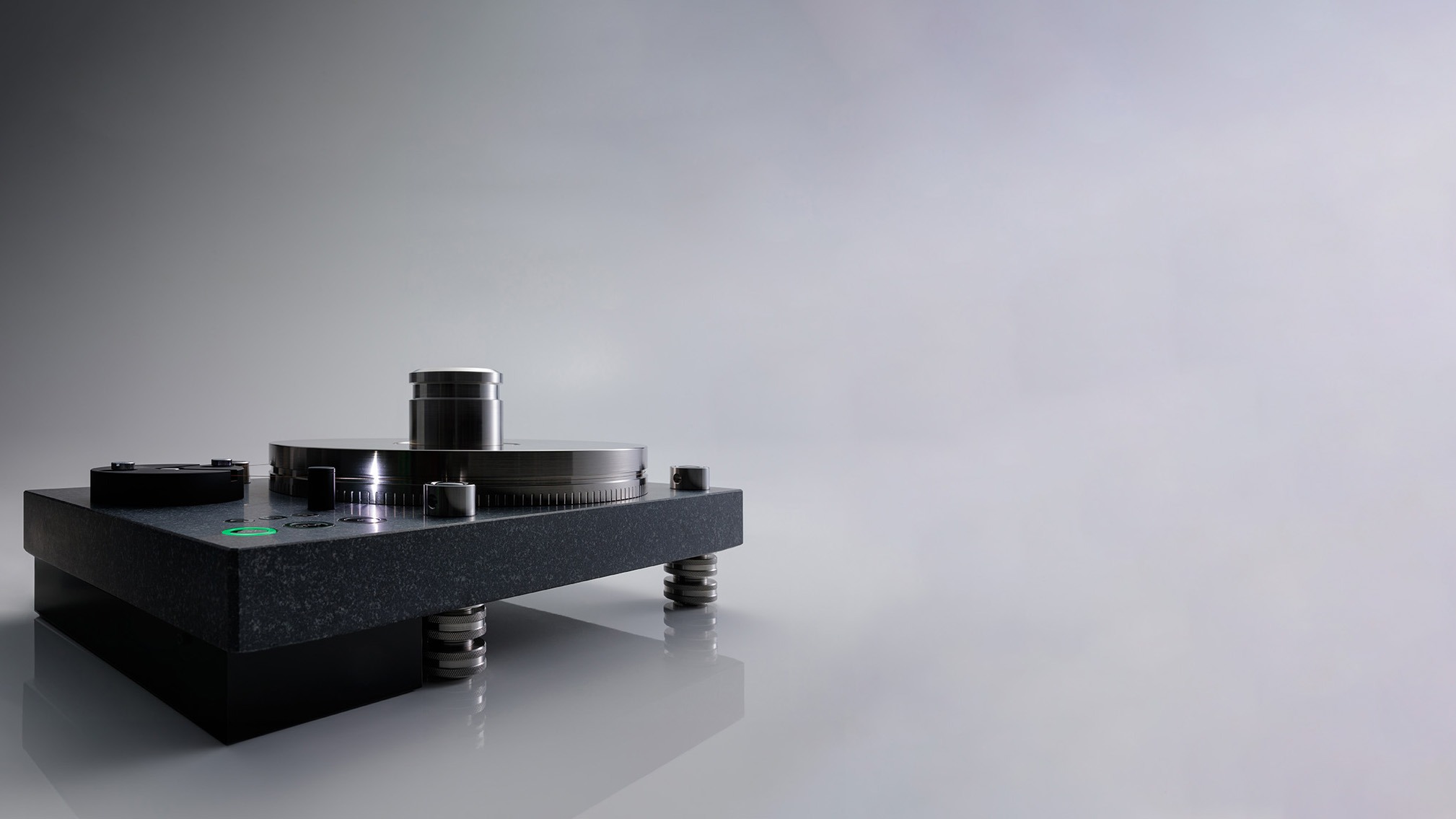

- Compactly designed turntable with a flagship concept. The mass of the granite base, the brass platter, and the air-floating structure combine to achieve rotation of uncompromising stillness.
- Heavyweight and high rigidity
- Non-servo motor drive
- Highly Quiet Air Supply
Features
- Heavyweight and high rigidity
- In the playback of records, which record sound vibrations in microns, unnecessary vibrations are suppressed as much as possible. Low-frequency vibrations are suppressed by weight, and high-frequency vibrations are suppressed by air. The heavyweight chassis, including the granite base and brass platter, and both the base and platter have an air floating structure with high-precision machining of 5μm to suppress the transmission of unnecessary vibrations.
detail

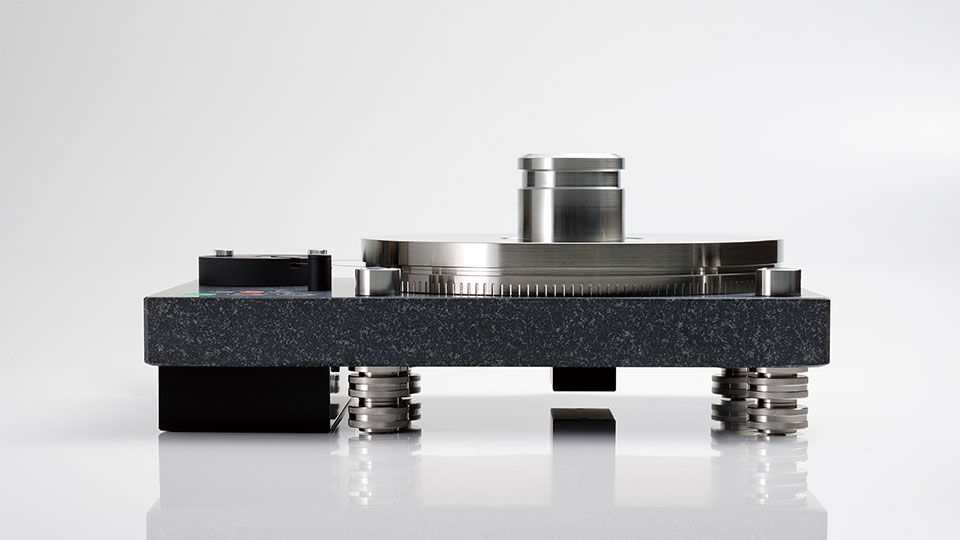

Base
It uses 19 kg of granite that has been stabilized over 5 million years. The granite's weight and vibration-damping characteristics suppress unnecessary vibrations from the floor surface. The granite is processed to JIS 0 grade with a flatness of 5μ, equivalent to a stone surface plate, which is the standard for manufacturing mother machines (machine tools), and a levitated plate rotates on it while maintaining a distance of several tens of μ.
Platter
To obtain stable rotation, a brass platter 296 mm in diameter and weighing 18 kg rotates with a high moment of inertia. The weight of the platter is supported by air pressure, and only a few hundred grams of lateral force is applied to the bearings, resulting in a structure free from unnecessary vibration and long-term reliability.
Stabilizer
The part where the platter touches the record disc is tapered, and the record disc is held in place from above by a heavy stainless steel stabilizer. The platter and the record are closely adhered to each other to suppress unnecessary vibration when the needle tip traces the record.
- Non-servo motor drive
- Accurate sound pickup requires constant, unwavering platter rotation. In the method of obtaining that rotation by servo control, the speed control cycle becomes a source of noise in the audio band. Therefore, open-loop control is employed, in which no servo control is applied. The 18 kg brass platter is rotated only by a high moment of inertia. Although there is a drawback that it takes a long time to start up, it has realized a high level of quietness without generating noise.
detail
XFD System
CS Port's unique drive system, which forms a direct digital voltage generator based on a frequency-accurate crystal oscillator to provide a fluctuation-free, high-precision voltage. This allows the coreless motor to rotate at a constant speed without speed control, rotating the 18 kg brass platter with only a high moment of inertia.

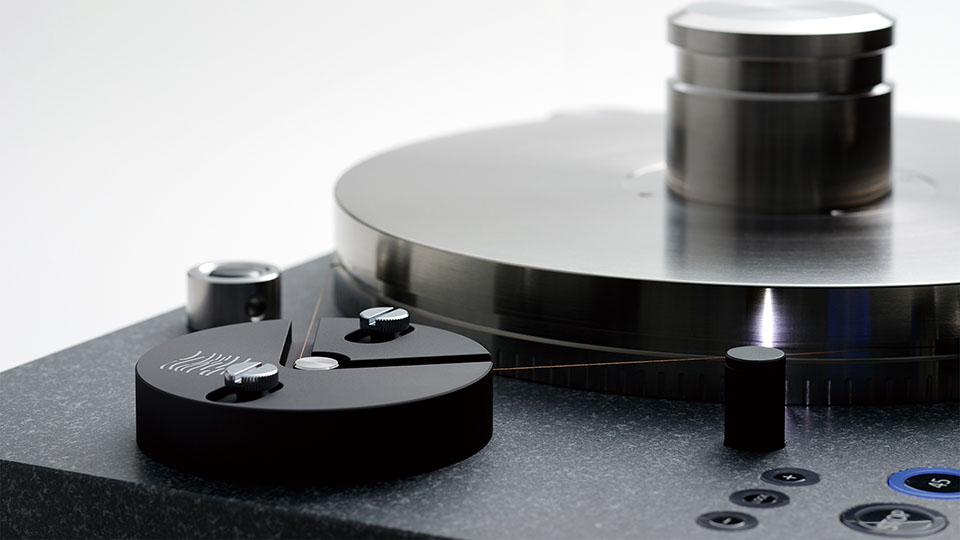

Thread drive
A thread drive made of aramid fiber, which is stronger than steel, transfers the force of the motor to the platter. While this has the disadvantage of taking a long time to start up, it does not easily transmit motor vibration and has little elongation, so it drives the platter reliably.

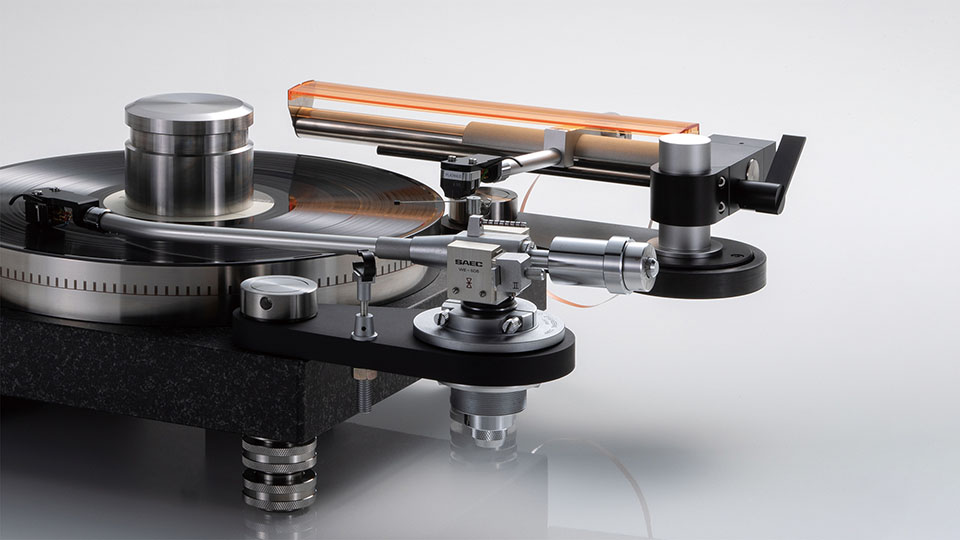

- Expandability with two arms
- Configurations can be selected to suit the system, such as using a swing arm or two arms. Swing arm attachments are precision-machined to fit the specified arm. (Sold separately)

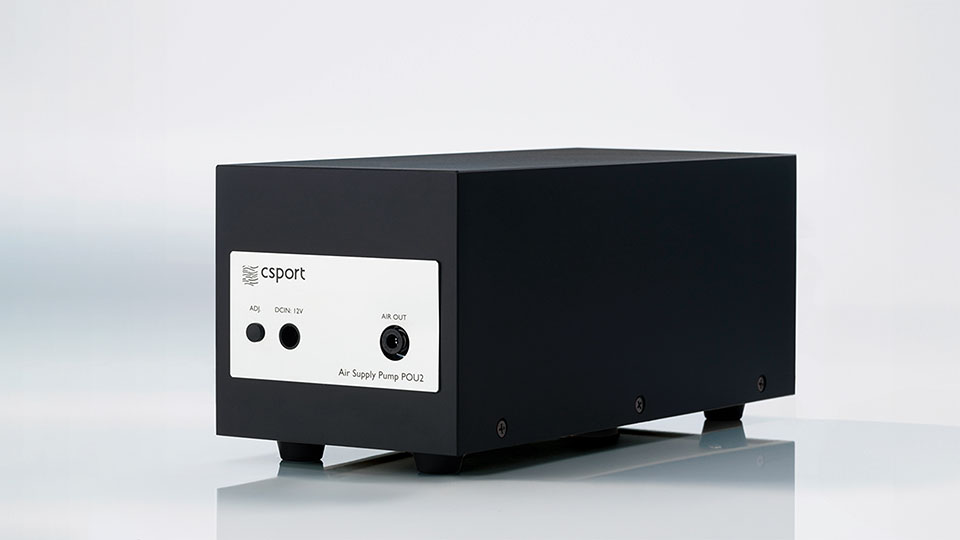

- Highly Quiet Air Supply
- The air supply is equipped with a highly reliable pump used in medical equipment to powerfully supply the volume required by the platter and linear arm. A double-sealed sound leakage and vibration prevention system keeps the system quiet enough to be installed in a listening room. Driven by 12 VDC supplied from the motor drive unit, the motor type pump used in medical equipment, etc., ensures stable operation over a long period of time. (Sold separately)
Specification
Model TAT2M2
Material
Base・・・Granite
Platter・・・Brass

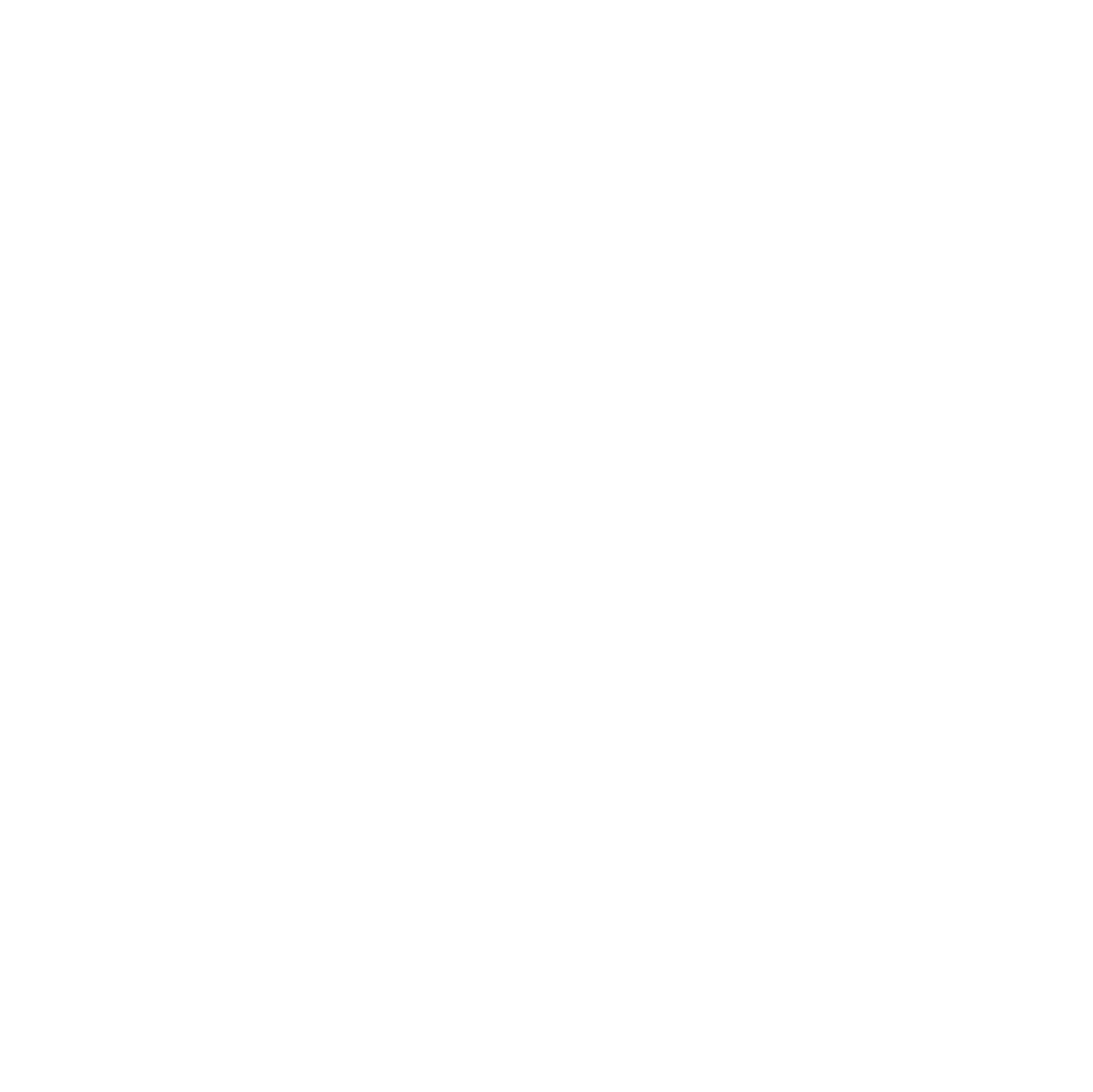

Dimensions
Base・・・440W×128H×320D mm
Platter・・・φ296×34.7H mm
Weight
Base・・・19 kg
Platter・・・18 kg
Motor Control
Quartz oscillator, No-Feedback XFD system
Drive System
Thread drive (Aramid)
Motor
DC coreless low-noise motor
Turntable Speeds
33⅓, 45rpm
Rotation Precision
±0.3%
Wow
0.2% or less
Flutter
0.04% or less
Power Supply
AC100/120/200/240 V, 50/60 Hz
Power Consumption
40 W
Accessories
AC cord, Air tube, Drive thread, Level, Lubricating oil, Platter handle
Sold Separately
Air Supply POU2
Arm Attachment LAA2 or SAA2
Stay for arm attachment
Player Board LPB2
Linear Arm AFU1-2
Warranty Period
5 years
○ Air Supply POU2 (sold separately) is required for use.
○ Since the motor is not servo controlled, it takes time to reach a constant speed.
○ Due to the use of granite, the pattern and color tone of the stone may vary depending on the production lot.
○ Dimensions do not include legs, knobs, or terminals.
○ The descriptions are current as of January 2025.
○ The appearance and specifications are subject to change without notice.
○ Actual colors may differ from those in the photographs due to photography, lighting, etc.
